Air Conditioned Server Cabinets

Martin’s Air Conditioned Server Cabinets provide fully independent climate control for installations where traditional HVAC is unavailable or unreliable. Featuring an integrated closed-loop cooling system, these cabinets maintain consistent internal temperatures in challenging environments such as manufacturing floors, utility closets, warehouses, remote sites, and offices with HVAC downtime. With flexible heat-exhaust options and customizable configurations, they protect critical equipment anywhere your operation requires and without the need for costly facility upgrades.

Features

  • Rugged and Multifunctional Welded 6063 – T5 Aluminum Extrusion Frame Design
  • Air Conditioned Enclosures Are Available in Side Mount, Rack Mount and Top Mounted Configurations and Are Configured in a Variety of Different Cabinet Heights and Depths

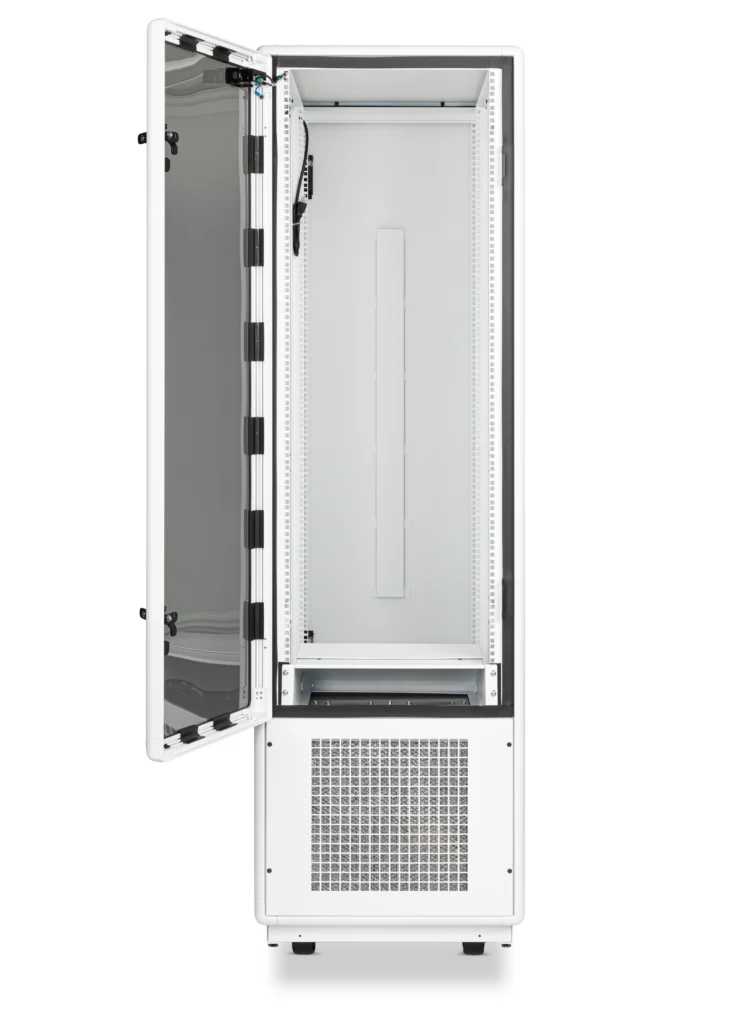

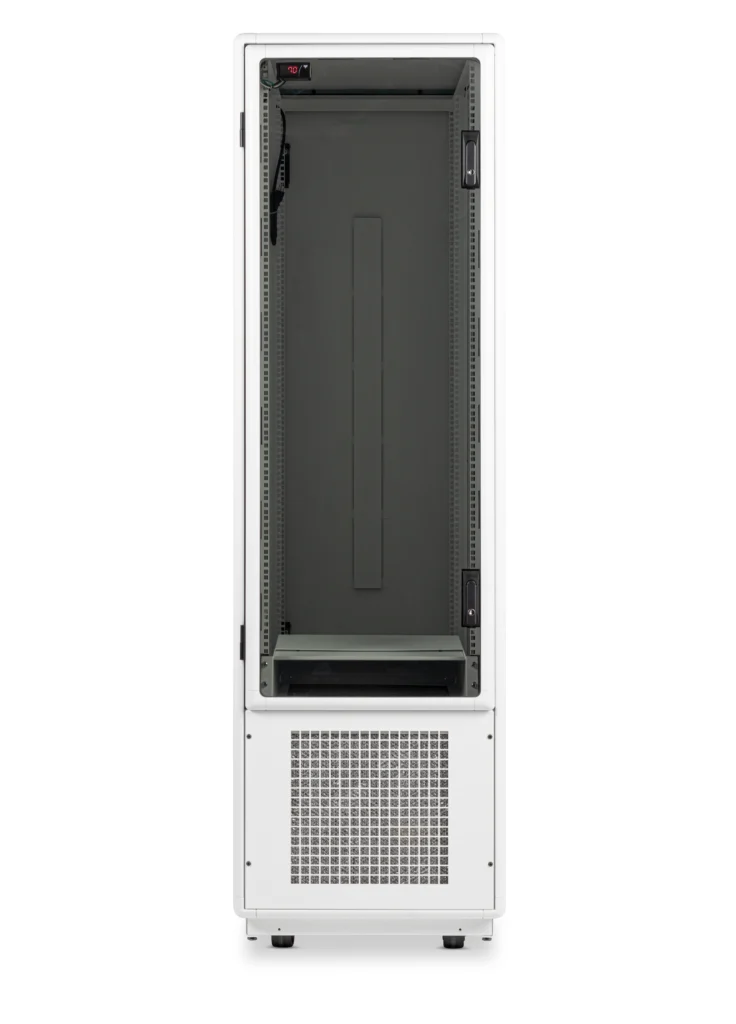

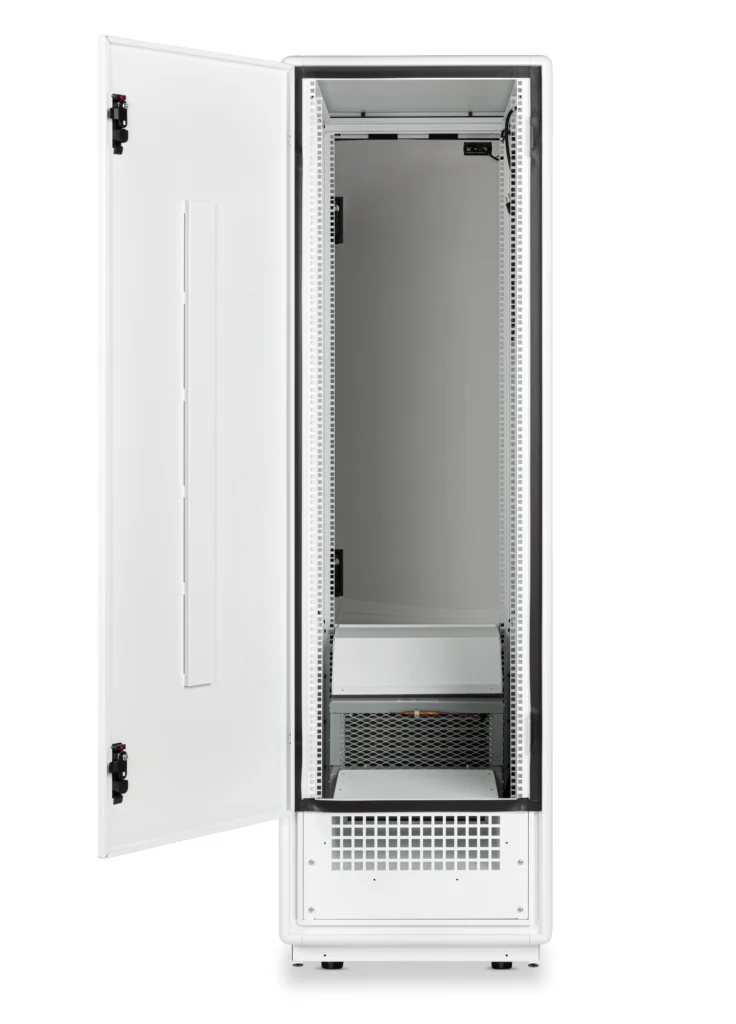

  • Rack Mounted AC Sizes Include 4K BTU (115v or 230v) and 9K BTU (230v)

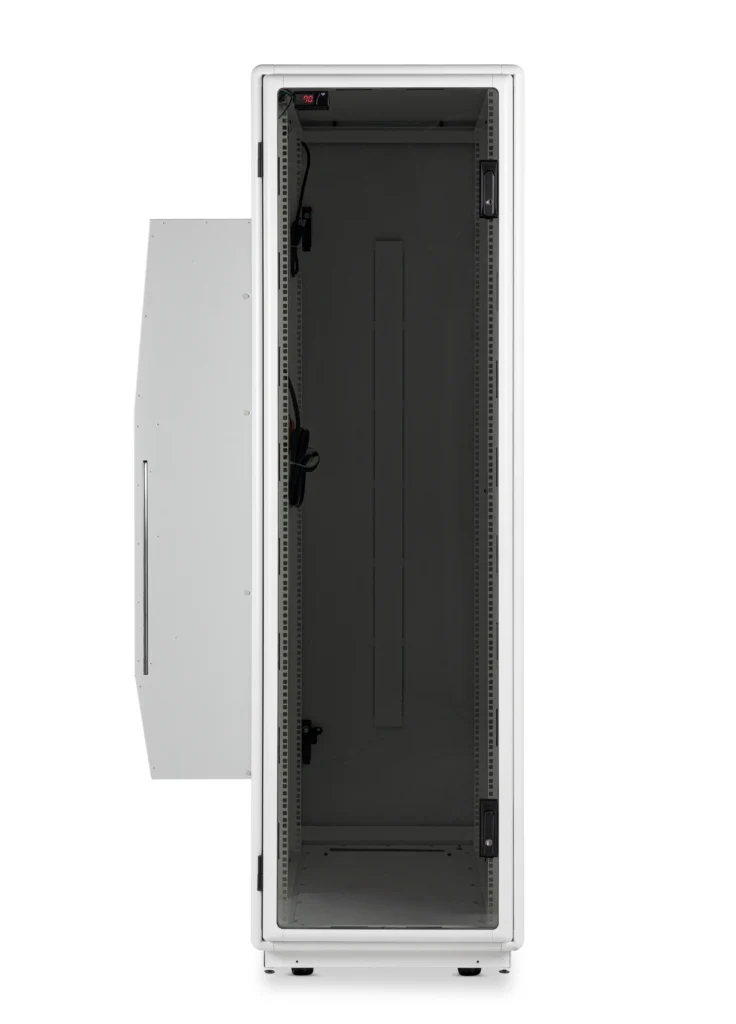

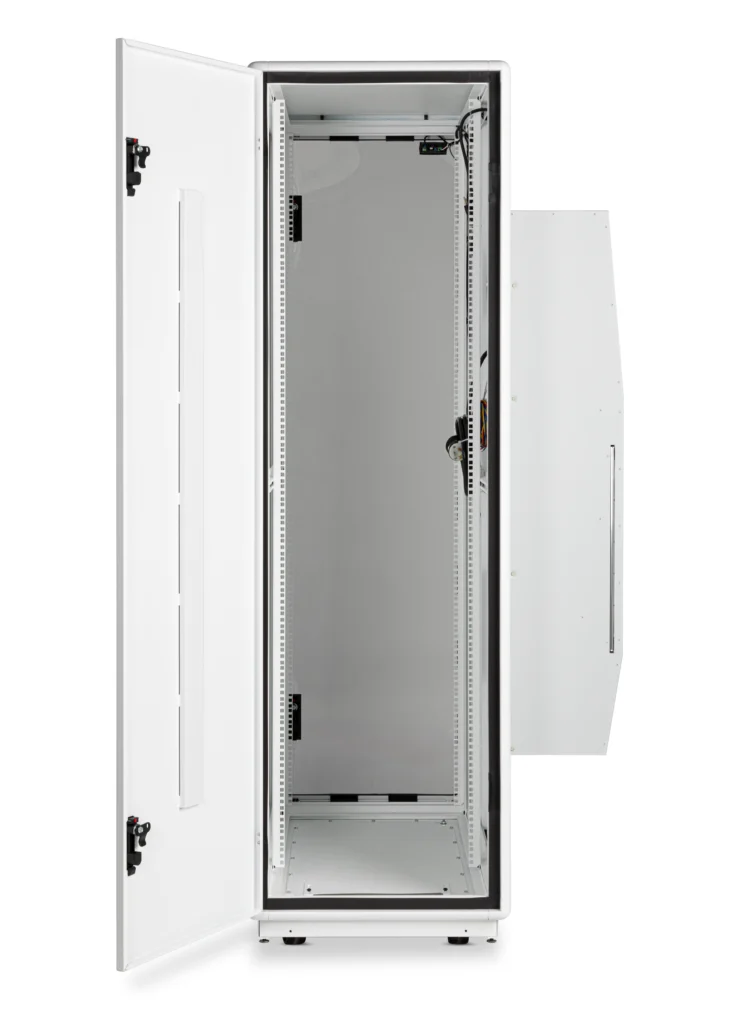

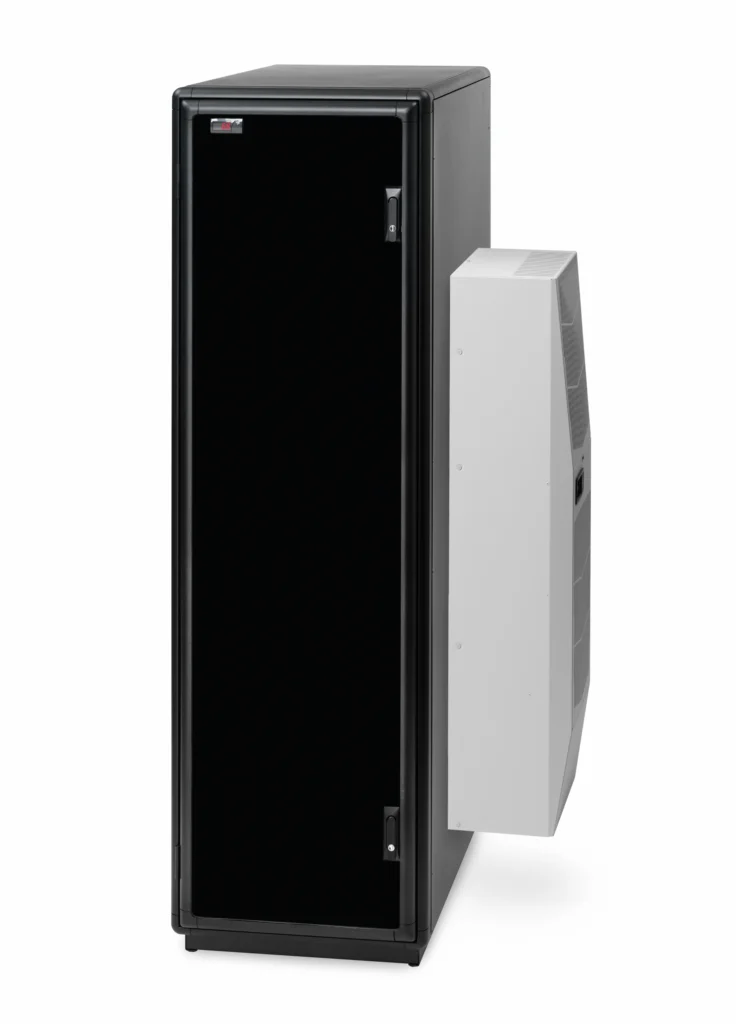

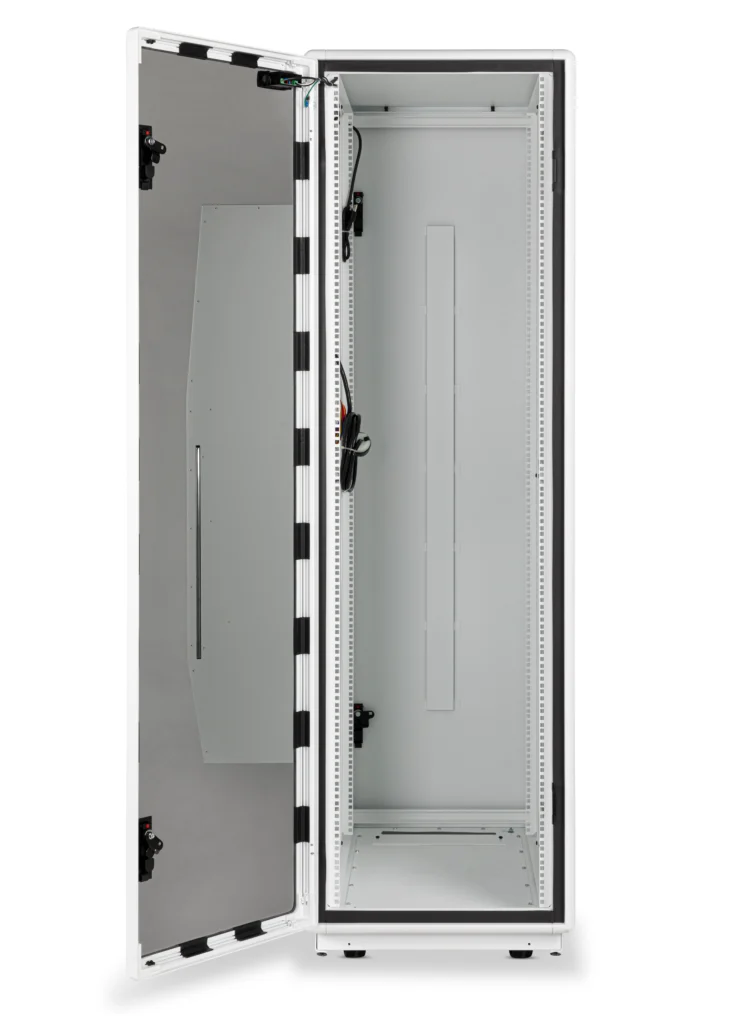

  • Side Mounted AC Sizes Include 800 BTU, 1K BTU, 2K BTU, 4KBTU, 6K BTU, 8K BTU, 12K BTU All Available in 115v or 230v
  • Side Mounted AC Size 20K BTU Available in 230V and 460V
  • Top Mounted AC Sizes Include 8K BTU (230V)
  • AC Units Available With Optional Heat and Remote Networking Packages
  • Side Mounted Air Conditioners are Shipped Separately; the Rack and Top Mounted Air Conditioners Are Shipped Fully Assembled
  • Earth Friendly Refrigerant
  • Mechanical Thermostat Located Behind the Filter on Rackmount and Top Mount Versions and on the Side of AC Unit on Side Mount Versions
  • LED Temperature Display on Front Door Displaying in ‘F’ Degrees (‘C’ Degrees available on special order)
  • Ducting Boot Kits Available for all Air Conditioner Sizes for Ducting Exhaust Air to Plenum or Other Area
  • Cleanable, Reusable Aluminum Mesh Filter
  • Includes Malfunction Switch For Use With a Variety of Customer Provided Alarms
  • Every Unit Quality Tested Prior to Shipping
  • Fully Sealed Enclosure Assembly; Closed Loop Air Conditioned Cooling
  • 1,500 LB Dynamic Load Capacity, 2,500 LB Static Load Capacity (HD Version Available Upon Request)
  • 19” Rack Mount Spacing
  • 24” Overall Frame Width (Wide Sizes Available Upon Request)
  • 38.42”, 44.42”, and 48.00″ Overall Depths Available
  • 14U-52U Height Options (8K BTU Side Mounts AC Units and Larger Require Minimum of 35U cabinet)
  • 2 Pairs of Fully Adjustable Square Hole Mounting Rails
  • Solid Top Panel
  • Lexan Front Door

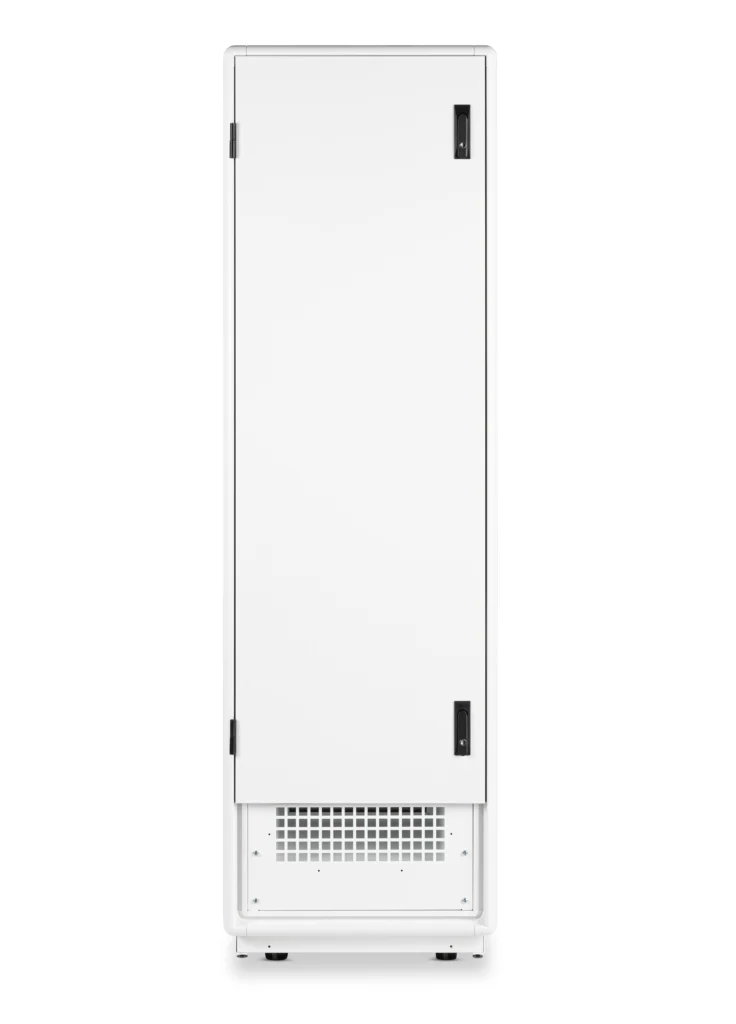

  • Solid Steel Rear Door
  • Caster Base with 3″ Casters and Levelers
  • Solid Bottom Panel with 3″ X 12″ Sliding Cable Access Door
  • Externally Removable Bolt On Side Panels
  • Hardware Pack Included: HWM6-40
  • Supports Wide Variety of Martin Accessories
  • Powder Coat Finish Available in a Variety of Standard and Custom Colors
  • Designed and Manufactured in the USA
  • Custom Sizes and Configurations Available Upon Request

Air Conditioned Server Cabinets

PART NUMBERHEIGHTWIDTHDEPTHCOOLING CAPACITYVOLTAGEFORM FACTORDRAWINGCAD MODEL
A422030-ACRM4K14U (820 mm)24″ (609 mm)32.42″ (823 mm)4K BTU115VRack MountDownloadDownload
A422030ACRM10K324U (1264 mm)24″ (609 mm)32.42″ (823 mm)10K BTU230VRack MountDownloadDownload
A732030ACRM10-142U (2067 mm)24″ (609 mm)32.42″ (823 mm)10K BTU230VRack MountDownloadDownload
A772030ACRM10K244U (2156 mm)24″ (609 mm)32.42″ (823 mm)10K BTU230VRack MountDownloadDownload
A842030ACRM10-248U (2334 mm)24″ (609 mm)32.42″ (823 mm)10K BTU230VRack MountDownloadDownload
A732030-ACSM12K42U (2067 mm)24″ (609 mm)32.42″ (823 mm)12K BTU115Side MountDownloadDownload
A772030-ACSM12K44U (2156 mm)24″ (609 mm)32.42″ (823 mm)12K BTU115VSide MountDownloadDownload
A842030-ACSM12K48U (2334 mm)24″ (609 mm)32.42″ (823 mm)12K BTU115VSide MountDownloadDownload
A732030-ACSM20K42U (2067 mm)24″ (609 mm)32.42″ (823 mm)20K BTU230VSide MountDownloadDownload
A772030-ACSM20K44U (2156 mm)24″ (609 mm)32.42″ (823 mm)20K BTU230VSide MountDownloadDownload
A842030-ACSM20K48U (2334 mm)24″ (609 mm)32.42″ (823 mm)20K BTU230VSide MountDownloadDownload
A422036-ACRM4K14U (820 mm)24″ (609 mm)38.42″ (976 mm)4K BTU115VRack MountDownloadDownload
A422036ACRM10-324U (1264 mm)24″ (609 mm)38.42″ (976 mm)10K BTU230VRack MountDownloadDownload
A732036ACRM10-242U (2067 mm)24″ (609 mm)38.42″ (976 mm)10K BTU230VRack MountDownloadDownload
A772036ACRM10-344U (2156 mm)24″ (609 mm)38.42″ (976 mm)10K BTU230VRack MountDownloadDownload
A842036ACRM10K548U (2334 mm)24″ (609 mm)38.42″ (976 mm)10K BTU230VRack MountDownloadDownload
A732036-ACSM12K42U (2067 mm)24″ (609 mm)38.42″ (976 mm)12K BTU115Side MountDownloadDownload
A772036-ACSM12K44U (2156 mm)24″ (609 mm)38.42″ (976 mm)12K BTU115VSide MountDownloadDownload
A842036-ACSM12K48U (2334 mm)24″ (609 mm)38.42″ (976 mm)12K BTU115VSide MountDownloadDownload
A732036-ACSM20K42U (2067 mm)24″ (609 mm)38.42″ (976 mm)20K BTU230VSide MountDownloadDownload
A772036-ACSM20K44U (2156 mm)24″ (609 mm)38.42″ (976 mm)20K BTU230VSide MountDownloadDownload
A842036-ACSM20K48U (2334 mm)24″ (609 mm)38.42″ (976 mm)20K BTU230VSide MountDownloadDownload
A422042-ACRM4K14U (820 mm)24″ (609 mm)44.42″ (1128 mm)4K BTU115VRack MountDownloadDownload
A422042-ACRM10K24U (1264 mm)24″ (609 mm)44.42″ (1128 mm)10K BTU230VRack MountDownloadDownload
A732042ACRM10K242U (2067 mm)24″ (609 mm)44.42″ (1128 mm)10K BTU230VRack MountDownloadDownload
A772042ACRM10K244U (2156 mm)24″ (609 mm)44.42″ (1128 mm)10K BTU230VRack MountDownloadDownload
A842042ACRM10K248U (2334 mm)24″ (609 mm)44.42″ (1128 mm)10K BTU230VRack MountDownloadDownload
A732042-ACSM12K42U (2067 mm)24″ (609 mm)44.42″ (1128 mm)12K BTU115Side MountDownloadDownload
A772042-ACSM12K44U (2156 mm)24″ (609 mm)44.42″ (1128 mm)12K BTU115VSide MountDownloadDownload
A842042-ACSM12K48U (2334 mm)24″ (609 mm)44.42″ (1128 mm)12K BTU115VSide MountDownloadDownload
A732042-ACSM20K42U (2067 mm)24″ (609 mm)44.42″ (1128 mm)20K BTU230VSide MountDownloadDownload
A772042-ACSM20K44U (2156 mm)24″ (609 mm)44.42″ (1128 mm)20K BTU230VSide MountDownloadDownload
A842042-ACSM20K48U (2334 mm)24″ (609 mm)44.42″ (1128 mm)20K BTU230VSide MountDownloadDownload
