Aluminum Frame Perforated Doors

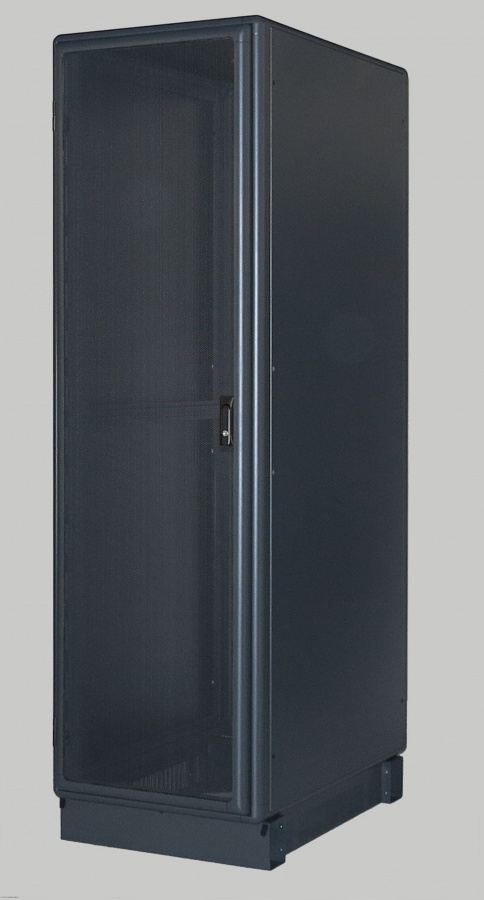

Martin International Enclosures’ Aluminum Extruded Frame Doors are crafted from durable 6063 T5 aluminum extrusion and feature a stylish rounded frame that complements the enclosure’s radius. With a 63% perforated panel, these doors provide excellent ventilation for optimal cooling. Each door includes a lockable swing-handle latch and lift-off hinges, opening a full 180 degrees. Left-hand hinges are standard, while right-hand hinges can be installed at assembly or field-reversed if supplied.

Features

  • 6063 – T5 Aluminum Extrusion Frame Design
  • Security
  • Protection
  • Ventilation
  • Aesthetic Appearance
  • Multiple Locking and Latching Options
  • Can Hinge Left or Right
  • Full, 1/2, 1/3, 1/4 height Doors Available for Most Enclosures and Can be Interchanged as Needed
  • Side by Side split doors (Optional)
  • Doors Open 180 Degrees
  • 78% Open Perforation Available Upon Request
  • Powder Coat Finish Available in a Variety of Standard and Custom Colors
  • Designed and Manufactured in the USA
  • Custom Sizes and Configurations Available Upon Request

Aluminum Frame Perforated Doors

PART NUMBERRACK HEIGHTRACK WIDTHINSERT TYPEDRAWINGCAD MODEL
LD4220CCRD24U24″PerforatedDownloadDownload
LD5220CCRD30U24″PerforatedDownloadDownload
LD6120CCRD35U24″PerforatedDownloadDownload
LD7020CCRD40U24″PerforatedDownloadDownload
LD7320CCRD42U24″PerforatedDownloadDownload
LD7720CCRD44U24″PerforatedDownloadDownload
LD8420CCRD48U24″PerforatedDownloadDownload
LD9120CCRD52U24″PerforatedDownloadDownload
LD4224CCRD24U28″PerforatedDownloadDownload
LD5224CCRD30U28″PerforatedDownloadDownload
LD6124CCRD35U28″PerforatedDownloadDownload
LD7024CCRD40U28″PerforatedDownloadDownload
LD7324CCRD42U28″PerforatedDownloadDownload
LD7724CCRD44U28″PerforatedDownloadDownload
LD8424CCRD48U28″PerforatedDownloadDownload
LD9124CCRD52U28″PerforatedDownloadDownload
LD4228CCRD24U32″PerforatedDownloadDownload
LD5228CCRD30U32″PerforatedDownloadDownload
LD6128CCRD35U32″PerforatedDownloadDownload
LD7028CCRD40U32″PerforatedDownloadDownload
LD7328CCRD42U32″PerforatedDownloadDownload
LD7728CCRD44U32″PerforatedDownloadDownload
LD8428CCRD48U32″PerforatedDownloadDownload
LD9128CCRD52U32″PerforatedDownloadDownload
