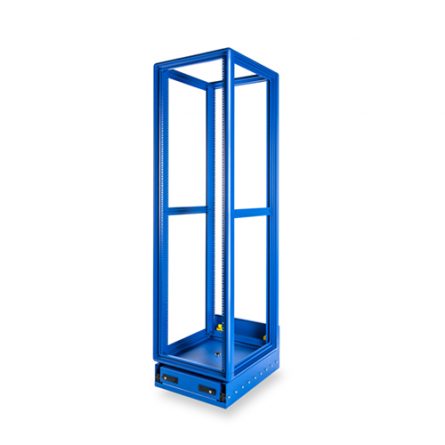

MSV-Series Slide Out Racks

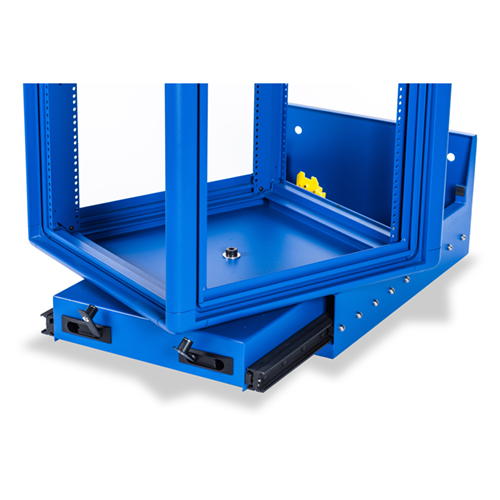

Martin Enclosures proudly introduces the MSV-Series Slide Out Rack, an innovative solution engineered for environments where accessibility and space efficiency are critical. Designed to pull out from the wall and swivel smoothly, the MSV-Series allows users to extend the rack forward and rotate it for effortless rear-access, all within a minimal footprint. This makes it an ideal choice for AV, broadcasting, and other technology dense installations.

Developed specifically for applications where space is both limited and valuable, the MSV-Series delivers exceptional strength and versatility. The rack supports up to 1,000 LBS and offers full 360-degree rotation, with cabling as the only limiting factor. For maximum stability, the MSV-Series must be securely bolted to both the wall and the floor.

Features

Rugged and Multifunctional Welded 6063 – T5 Aluminum Extrusion Frame Design
19” Rack Mount Spacing
24” Overall Frame Width
24” and 30” Internal Depths Available
28″ Pull Out Extension (For 24″ depth version)
35″ Pull Out Extension (For 30″ depth version)
Rack Has Safety Slide Out and Swivel Locks (Separately)
1,000 LB Weight Load Capacity (HD Versions Available Upon Request)
14U-42U Height Options
2 Pairs of Fully Adjustable Square Hole Mounting Rails
Doors and Panels Optional
Hardware Pack Included: HWM6-40
Supports Wide Variety of Martin Accessories
Powder Coat Finish Available in a Variety of Standard and Custom Colors
Designed and Manufactured in the USA
Custom Sizes and Configurations Available Upon Request

MSV-Series Slide Out Racks

PART NUMBER	HEIGHT	WIDTH	DEPTH	DRAWING	CAD MODEL
MSV422024	24U	24″	28.50″	Download	Download
MSV422030	24U	24″	34.50″	Download	Download
MSV422036	24U	24″	40.50″	Download	Download
MSV732024	42U	24″	28.50″	Download	Download
MSV732030	42U	24″	34.50″	Download	Download
MSV732036	42U	24″	40.50″	Download	Download
