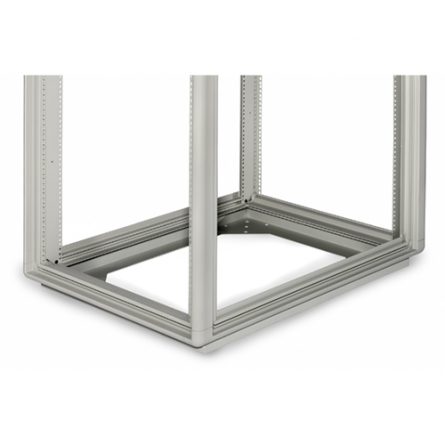

Open Frame Server Rack with Bolt Down Base

Server-Rack-Bolt-Down-Base

Standard enclosures with Bolt Down Bases are use when it is necessary or desired to secure the enclosure to the floor. Bolting the enclosure to the floor adds a safety factor when extending sliding shelves and drawers with equipment on them by preventing the enclosure from tipping over.

The Bolt Down Base has bolt pattern consisting of (3) .562 diameter holes in each corner of the base to allow for variations in required bolt down patterns.

Sales Information

Features

  • Multi-vendor server enclosure
  • Houses both tower style and rack mount equipment
  • Available in many standard heights, widths, and depths
  • Field reversible doors when specified
  • Textured powder coat finish
  • Multiple color options
  • Shipped completely assembled
  • Modified standard sizes, configurations and colors available upon request
  • Infinitely adjustable vertical mounting rails
  • Patented aluminum extruded 6063-T5 frame with steel doors and panels
  • US patent # 6,179,398

Frame Includes

  • Patented high performance aluminum extruded welded frame rated at 2500 LBS.
  • Base and 3 sets of EIA 310D standard “L” shaped square hole, M6 vertical mounting rails

Options & Accessories

Part Numbers

Standard 19" EIA Rack Mounting
Panel Opening Height24" Internal Depth30" Internal Depth 36" Internal Depth 42" Internal Depth
24.5" (14U)241924-LBB241930-LBB241936-LBB241942-LBB
35" (20U)351924-LBB351930-LBB351936-LBB351942-LBB
42" (24U)421924-LBB421930-LBB421936-LBB421942-LBB
52.5" (30U)521924-LBB521930-LBB521936-LBB521942-LBB
61.25" (35U)611924-LBB611930-LBB611936-LBB611942-LBB
70" (40U)701924-LBB701930-LBB701936-LBB701942-LBB
73.5" (42U)731924-LBB731930-LBB731936-LBB731942-LBB
77" 44U)771924-LBB771930-LBB771936-LBB771942-LBB
84" (48U)841924-LBB841930-LBB841936-LBB841942-LBB
Standard 19" Rack Mounting with 24" O.D. width footprint
Panel Opening Height24" Internal Depth30" Internal Depth 36" Internal Depth 42" Internal Depth
24.5" (14U)242024-LBB242030-LBB242036-LBB242042-LBB
35" (20U)352024-LBB352030-LBB352036-LBB352042-LBB
42" (24U)422024-LBB422030-LBB422036-LBB422042-LBB
52.5" (30U)522024-LBB522030-LBB522036-LBB522042-LBB
61.25" (35U)612024-LBB612030-LBB612036-LBB612042-LBB
70" (40U)702024-LBB702030-LBB702036-LBB702042-LBB
73.5" (42U)732024-LBB733030-LBB732036-LBB732042-LBB
77" 44U)772024-LBB772030-LBB772036-LBB772042-LBB
84" (48U)842024-LBB842030-LBB842036-LBB842042-LBB
Standard 23" Rack Mounting Width
Panel Opening Height24" Internal Depth30" Internal Depth 36" Internal Depth 42" Internal Depth
24.5" (14U)242324-LBB242330-LBB242336-LBB242342-LBB
35" (20U)352324-LBB352330-LBB352336-LBB352342-LBB
42" (24U)422324-LBB422330-LBB422336-LBB422342-LBB
52.5" (30U)522324-LBB522330-LBB522336-LBB522342-LBB
61.25" (35U)612324-LBB612330-LBB612336-LBB612342-LBB
70" (40U)702324-LBB702330-LBB702336-LBB702342-LBB
73.5" (42U)732324-LBB732330-LBB732336-LBB732342-LBB
77" 44U)772324-LBB772330-LBB772336-LBB772342-LBB
84" (48U)842324-LBB842330-LBB842336-LBB842342-LBB
Standard 24" Communications Rack Mounting Width (19" mounting optional)
Panel Opening Height24" Internal Depth30" Internal Depth 36" Internal Depth 42" Internal Depth
24.5" (14U)242424-LBB242430-LBB242436-LBB242442-LBB
35" (20U)352424-LBB352430-LBB352436-LBB352442-LBB
42" (24U)422424-LBB422430-LBB422436-LBB422442-LBB
52.5" (30U)522424-LBB522430-LBB522436-LBB522442-LBB
61.25" (35U)612424-LBB612430-LBB612436-LBB612442-LBB
70" (40U)702424-LBB702430-LBB702436-LBB702442-LBB
73.5" (42U)732424-LBB732430-LBB732436-LBB732442-LBB
77" 44U)772424-LBB772430-LBB772436-LBB772442-LBB
84" (48U)842424-LBB842430-LBB842436-LBB842442-LBB
28" Rack Mounting in Extra Wide Unit for Cabling and Airflow (19", 23", or 24" mounting optional)
Panel Opening Height24" Internal Depth30" Internal Depth 36" Internal Depth 42" Internal Depth
24.5" (14U)242824-LBB242830-LBB242836-LBB242842-LBB
35" (20U)352824-LBB352830-LBB352836-LBB352842-LBB
42" (24U)422824-LBB422830-LBB422836-LBB422842-LBB
52.5" (30U)522824-LBB522830-LBB522836-LBB522842-LBB
61.25" (35U)612824-LBB612830-LBB612836-LBB612842-LBB
70" (40U)702824-LBB702830-LBB702836-LBB702842-LBB
73.5" (42U)732824-LBB732830-LBB732836-LBB732842-LBB
77" 44U)772824-LBB772830-LBB772836-LBB772842-LBB
84" (48U)842824-LBB842830-LBB842836-LBB842842-LBB
