Mechatronic Smart Swing Handle

Martin Enclosures carries the full line of E-Line by Dirak server rack products. With increasing number of data breaches and compliance regulations, the E-Line MLR series will provide your data center with the scalable and granular rack level access control needed to exceed all current industry standards.

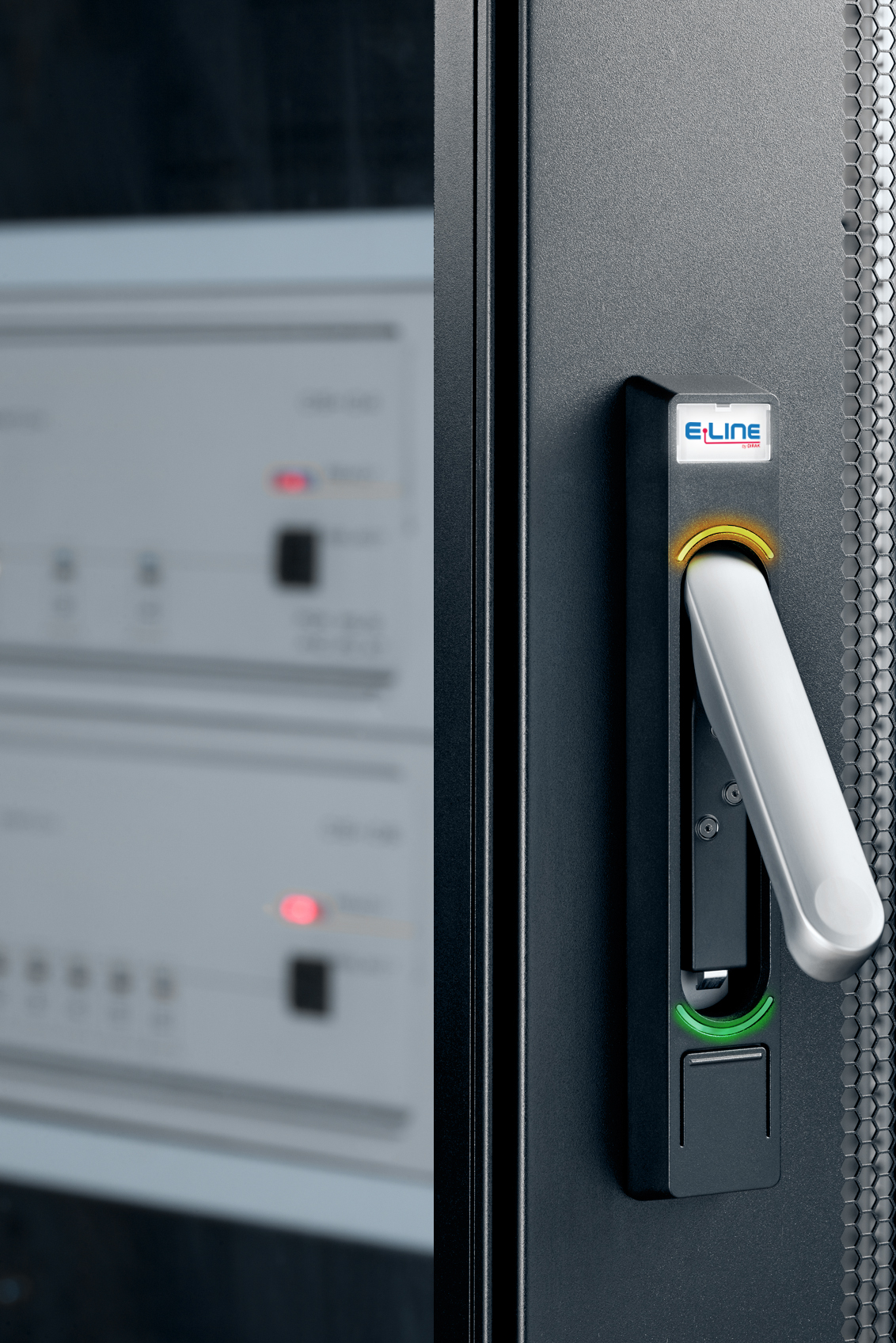

The products in the MLR series are used to secure and monitor server racks – whether in large data centers or individual data racks. Access control takes place either directly on the handle via PIN code, via transponder card, or centrally, via a management system. The handles are part of an integrated system solution for controlling access.

    MLR1000

  • Designed to be integrated into existing security management systems
  • Integrates into all major rack manufacturers
  • LED lock status indicator
  • MLR2500

  • Designed to be integrated into existing security management systems

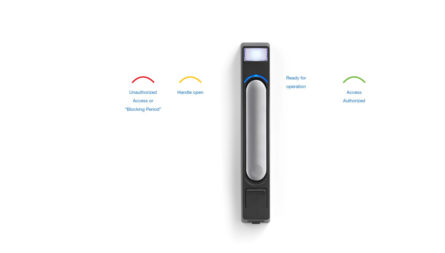

  • LED lock status indicator
  • Wiegand/OSDP communication
  • Hybrid 125kHz and 13.56MHz antenna optional support for iCLASS, PIV

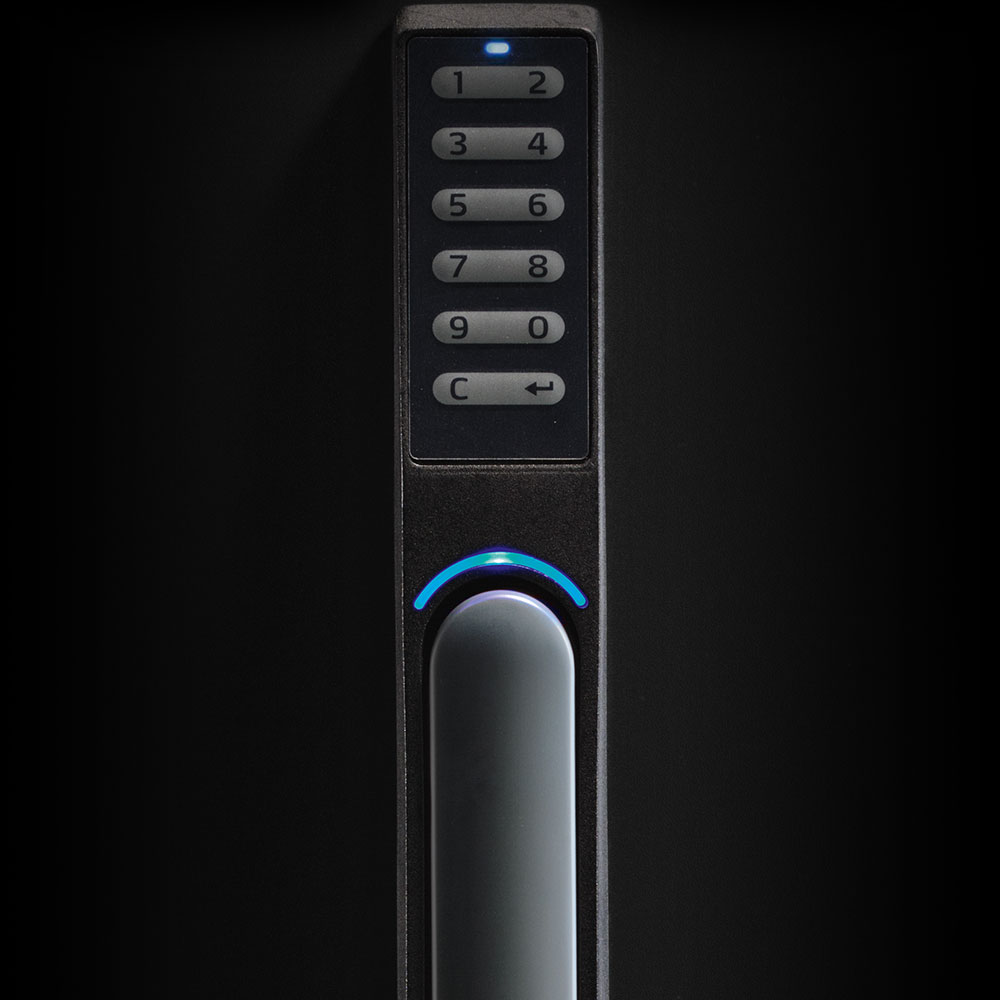

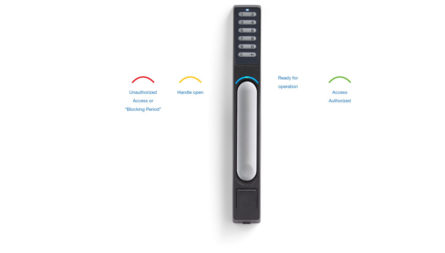

  • For an additional factor of authentication the MLR2500 KEYPAD is available

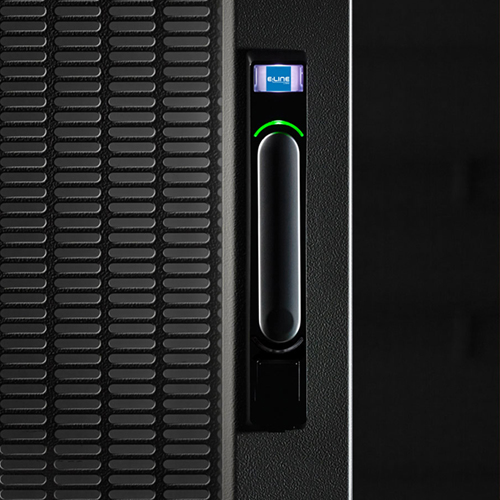

  • MLR3000

  • Designed to be used with large number of racks in close proximity
  • One IP address can manage up to 32 handles (RS-485)
  • 125kHz or 13.56MHz readers which support all major RFID brands
  • Integrated temperature monitoring
  • Managed with E-LINE by DIRAK’s Administration Suite Software
  • For an additional factor of authentication the MLR3000 KEYPAD is available
  • MLR5000

  • Designed for racks in separated locations or for installations desiring independent IP assignments
  • One IP address is assigned per handle
  • 125kHz or 13.56MHz readers which support all major RFID brands
  • Integrated temperature monitoring
  • Managed with E-LINE by DIRAK’s Administration Suite Software
  • For an additional factor of authentication the MLR5000 KEYPAD is available
