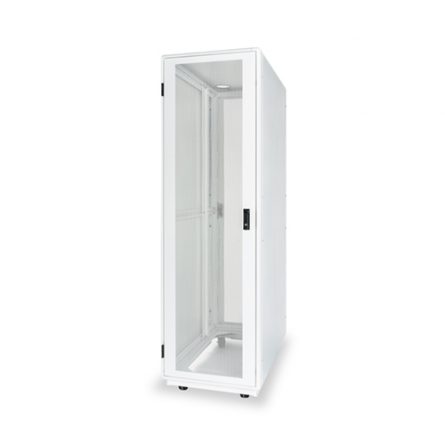

MSR-Series Server Rack

Martin Enclosures introduces its standard high quality preconfigured Server Rack. The MSR-Series Server Rack is a turnkey solution designed and ready for Data Center and IT & Networking rack mount applications.

The MSR-Series server rack is made from Martin’s streamlined patented aluminum extruded frame, built rugged, and still maintains an aesthetic appeal. The MSR-Series server rack provides a secure environment for your critical rack mount equipment and supports a wide range of Martin accessories including power distribution, cooling, and cable management. The rear lacing panel allows for multiple cable management options along with tool less mounting for two vertical PDUs.

Ships in 3-5 Days

For Large Quantities Please Call for Pricing

Features

  • Rugged and Multifunctional Welded Aluminum Extrusion Frame Design, with a Static Load Capacity of 3,000 lbs
  • 2 Pair of Fully Adjustable Square Hole Mounting Rails
  • Solid Top Panel with (2) Cable Access Holes in the Rear

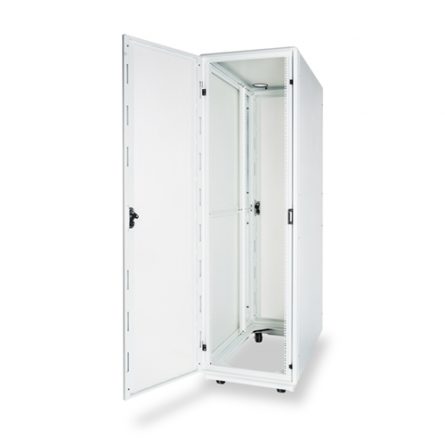

  • Perforated Front and Rear Doors for Ideal Air Flow
  • Caster Base

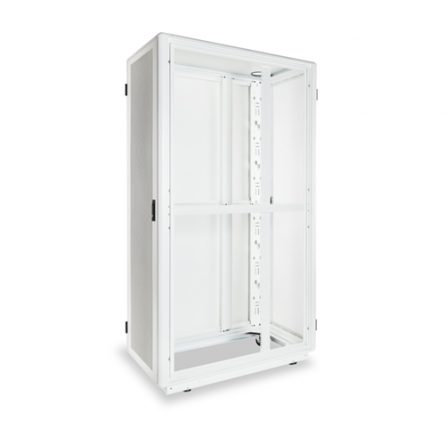

  • Externally Removable Side Panels
  • Lacing Panel for Mounting up to (2) Vertical PDUs without the Use of Tools and can accommodate a wide variety of cable management accessories.
  • 19” Rackmount Compatible with IBM, HP, Dell and Cisco equipment
  • 24” Overall Frame Width to fit within the data center Floor Tiles
  • 38.42” and 44.42” Overall Depths available
  • 40U, 42U, and 44U Height Options
  • Supports Wide Variety of Martin Accessories

Part Numbers

Part NumberPanel Opening HeightRackmount WidthInternal Depth
MSR70203670" (40U)19" 36"
MSR70204270" (40U)19"42"
MSR73203673.5" (42U)19"36"
MSR732042 73.5" (42U)19"42"
MSR772036 77" (44U)19"36"
MSR77204277" (44U)19"42"
