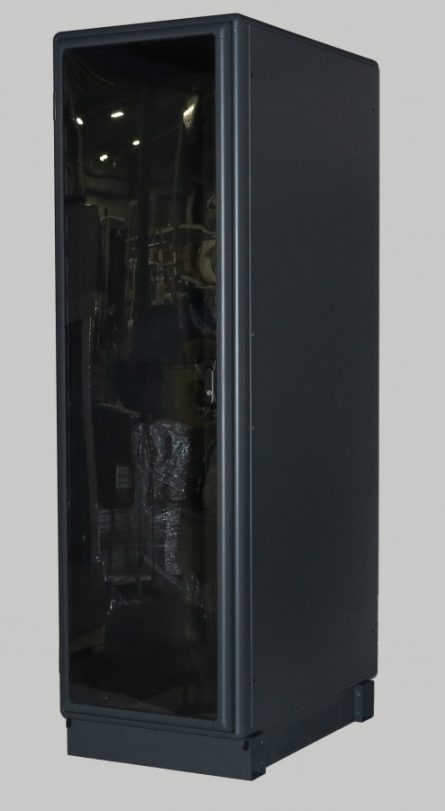

Lexan® Door

Lexan® Doors are made with an aluminum extruded frame with a radius to match the enclosure for aesthetic appeal.

Lexan Doors have a smoked polycarbonate resin thermoplastic panel that does not break like acrylic panels do and allows the customer to see the equipment in the enclosure and view the operational lights on the equipment.

Lexan Doors come with a standard lockable swing handle latch and lift off left hand hinges as a default, right hand hinging available.

Features

  • Security
  • Protection
  • Ventilation
  • Aesthetic appearance
  • Multiple locking and latching options
  • Can hinge left or right
  • Doors open 180 degrees

Part Numbers

Panel Opening
Height
19" ID Wide
Enclosures
20" ID Wide
Enclosures
23" and 24" Mounting
in 24" ID Wide Enclosures
28" ID Wide
Enclosures
21.09" (12U)LD2119LD2120LD2124LD2128
24.59" (14U)LD2419LD2420LD2424LD2428
35.09" (20U)LD3519LD3520LD3524LD3528
42.09 (24U)LD4219LD4220LD4224LD4228
52.59 (30U)LD5219LD5220LD5224LD5228
61.34 (35U)LD6119LD6120LD6124LD6128
70.09 (40ULD7019LD7020LD7024LD7028
73.59 (42U)LD7319LD7320LD7324LD7328
77.09 (44U)LD7719LD7720LD7724LD7728
84.09 (48U)LD8419LD8420LD8424LD8428
