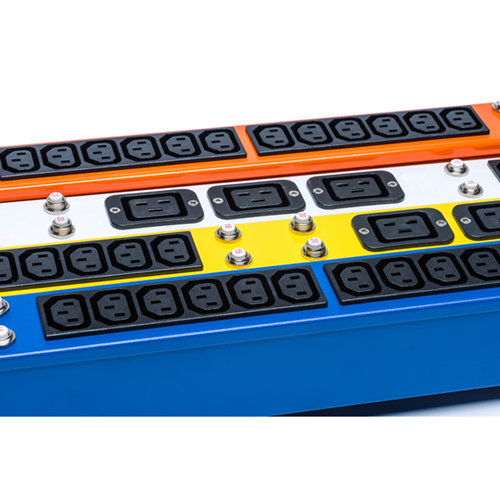

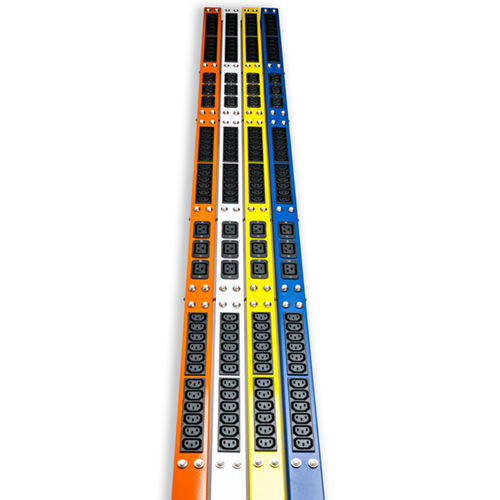

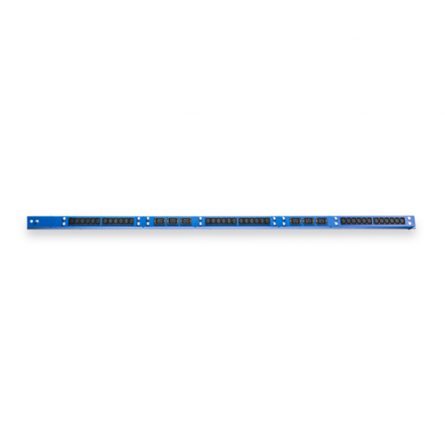

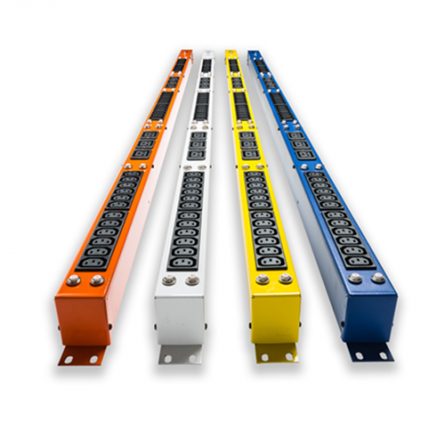

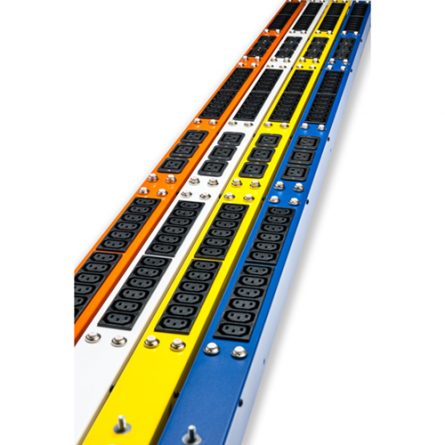

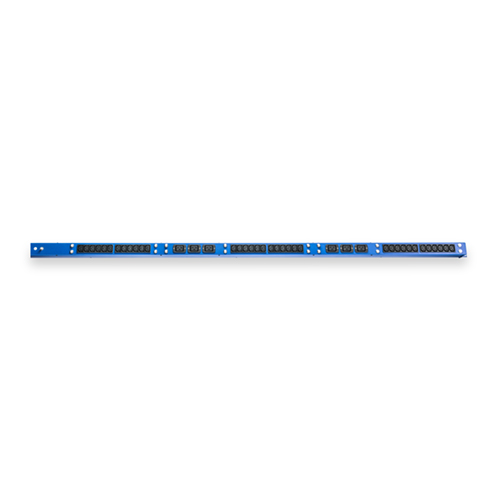

Vertical Power Strips – Power Distribution Units (PDU)

Custom and standard vertical power strips designed to complement our server rack and rackmount enclosures with the same quality and flexibility.

Vertical power strips offer power distribution solutions for any equipment enclosure. Customers are able to optimize power consumption with specific and high-end power distribution capabilities, while minimizing power cabling for best performance.

Features

  • All of our Power Distribution Units are ETL approved
  • Completely adaptable vertical and rack mount units and box sizes can be designed to fit any mounting application
  • Input power options include via cord and plug, input receptacle or hardwire terminal blocks
  • Single phase 120V, 208 and 230V, 120/208 3-phase, up to 100A
  • Various input and power cord solutions
  • Output receptacles can be accommodated including all NEMA straight and twist lock styles, as well as IEC320 C13 and C19, in any combination
  • Over-current alarm LEDs
  • Standard RMS and “peak” level metering with options for RS232/RS485 interface
  • All power strips are ETL/UL60950 cabled and tested

Options & Accessories

  • Standard and custom configurations
  • Custom silk screening
  • Color coding

Part Numbers

POWER STRIP SELECTION GUIDE
For Power Strip Models Not Shown and Custom Power Strip Inquiries Please Contact Us

Part #DescriptionPrice
PSM42-10-6-15Power Strip, 24U Vertical, 120V 15A
$119.52
PSM42-10-6-20Power Strip, 24U Vertical, 120V 20A
$147.15
PSM70-11-6-15Power Strip, 40U Vertical, 120V 20A
$124.23
PSM70-11-6-20Power Strip, 40U Vertical, 120V 20A
$152.46
PSM7020-6-20-TLPower Strip, 40U Vertical, 120V 20A
$307.92
PSM7020-12-20-TLPower Strip, 40U Vertical, 120V 20A
$326.27
PSM7020M-24-170" Vertical Power Strip, with Local Current Monitoring Display
$434.16
PSM70CM115-CSP1Vertical Power Strip, 115V, CSP
$454.36
PSM70220C13-AF1220V Vertical Power Strip, 20A
$415.41
PSM7020-630-RM1Power Strip, Vertical -Input: 230V 30A -Output: 230V 15A per outlet
$384.91
PSM70208ML630-170" Vertical 220V Power Distribution Strip
$564.30
PSM7024-3P30-1Power Strip, Vertical, 3-Phase, 30A
$407.70
PSM7024-3P20-1Power Strip, Vertical, 3-Phase, 20A
$388.80
PSM7024-3P50-4Power Strip, 40U Vertical, 120/208V 3-Phase 50A with Hardwire Input $508.01
PSM7020-12-20-1Power Strip, 40U Vertical, 120V 20A
$236.29
PSM7020-6-20-1Power Strip, 40U Vertical, 120V 20A
$219.73
