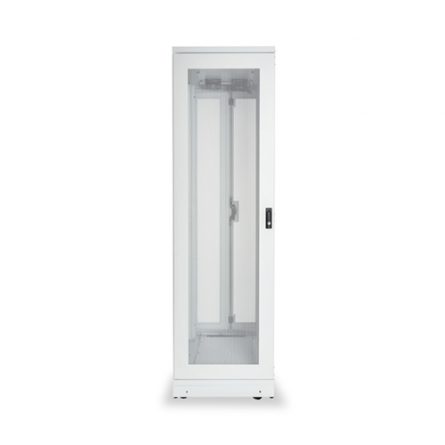

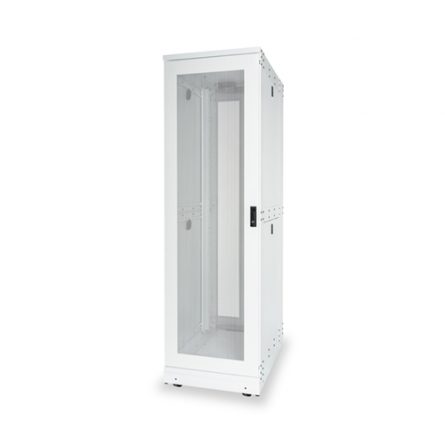

MPR-Series Server Rack

The latest addition to the Martin line is the MPR-Series Server Rack. The MPR-Series Server Rack gives customers a versatile and affordable option to safely secure their data.

The MPR-Series Server Rack is designed to meet and exceed the standards of today’s IT market trends. Optimal cable management is built in to the top panel, bottom panel, and rear lacing panel. The rear lacing panels allow for multiple cable management options along with tool less mounting for two vertical PDUs per side.

Ships in 3-5 Days

For Large Quantities Please Call for Pricing

Features

  • Rugged Multifunctional Riveted Steel Frame, with a Static Load Capacity of 3,000 lbs.
  • 2 Pairs of Fully Adjustable Square Hole Mounting Rails
  • Caster Base
  • Solid Top Panel with front and rear cable entry.
  • Front and rear bottom cable entry.

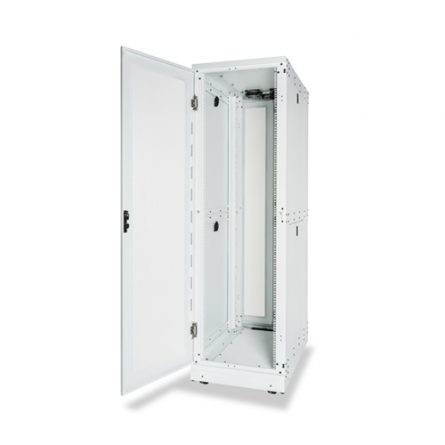

  • Front Perforated steel door with locking latch.

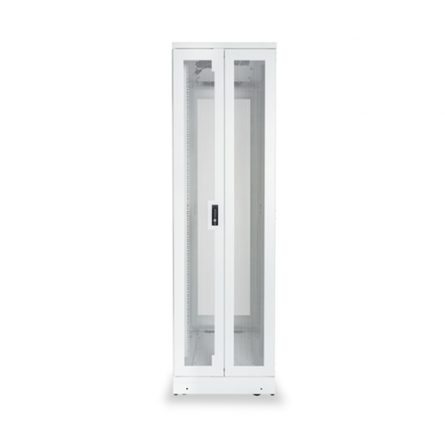

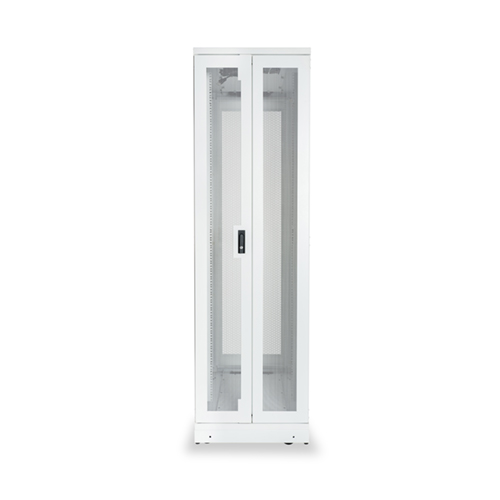

  • Rear perforated double steel doors with locking latch.

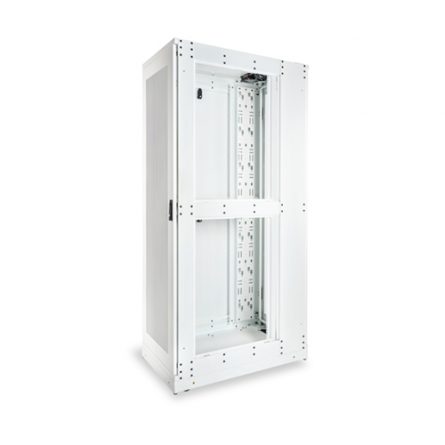

  • Externally Removable Locking Split Side Panels.
  • (2) Lacing Panels for Mounting up to (4) Vertical PDUs without the Use of Tools and can accommodate a wide variety of cable management accessories.
  • 19” Rackmount Compatible with IBM, HP, Dell and Cisco equipment.
  • 23.85” Overall Frame Width to fit within the data center Floor Tiles
  • 40” and 46” Overall Depths Available
  • 40U, 42U, and 44U Height Options
  • Supports Wide Variety of Martin Accessories

Options & Accessories

  • Solid, Perforated, and Fan Options Available for Top and Bottom Panel
  • Top and Bottom Brushed Cable Entry
  • Solid Doors
  • Cable Management
  • Shelves
  • Keyboard Trays
  • Blanking Panels

Part Numbers

Part NumberPanel Opening HeightRackmount WidthInternal Depth
MPR73193673.5" (42U)19"36"
MPR73194273.5" (42U)19"42"
MPR77193677" (44U)19"36"
MPR77194277" (44U)19"42"
