Wide Server Rack with 19″ Reducer Rails

Wide-Server-Rack

24″ ID Wide Standard Enclosure has a wider frame with reducer rails that are used to allow for additional management space for low voltage cable, power cable, and fiber on each side of the equipment.

This frame also provides for a better airflow situation by moving the routing of the cables to the sides of the enclosure away from the airflow in the front and the rear of the equipment.

Sales Information

Features

  • Multi-vendor server enclosure
  • Houses both tower style and rack mount equipment
  • Available in many standard heights, widths, and depths
  • Field reversible doors when specified
  • Textured powder coat finish
  • Multple color options
  • Shipped completely assembled
  • Modified standard sizes, configurations and colors available upon request
  • Infinitely adjustable vertical mounting rails
  • Patented aluminum extruded 6063-T5 frame with steel doors and panels
  • US patent # 6,179,398

Frame Includes

  • Patented high performance aluminum extruded welded frame rated at 1200 LBS with casters, 2500 LBS without casters

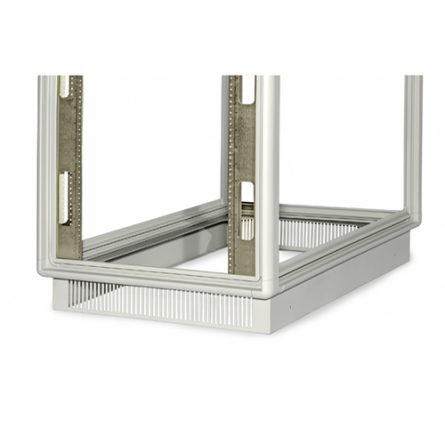

  • Base, casters, levelers, and 3 pair of EIA 310 D standard “L” shaped square hole reducer rails to create a 19″ mounting pattern in a 24″ ID frame, vertical mounting rails and a (40) pack of M6 cage nuts, screws, and nylon washers (Rails shown in picture above are plated, have cable access cut outs, and have round tapped mounting holes, which is not included on standard reducer rails).

Options & Accessories

Part Numbers

Standard 24" Communications Rack Mounting Width with 19" Reducer Rails
Panel Opening Height24" Internal Depth30" Internal Depth36" Internal Depth42" Internal Depth
24.5" (14U)242424-RR19242430-RR19242436-RR19242442-RR19
35" (20U)352424-RR19352430-RR19352436-RR19352442-RR19
42" (24U)422424-RR19422430-RR19422436-RR19422442-RR19
52.5" (30U)522424-RR19522430-RR19522436-RR19522442-RR19
61.25" (35U)612424-RR19612430-RR19612436-RR19612442-RR19
70" (40U)702424-RR19702430-RR19702436-RR19702442-RR19
73.5" (42U)732424-RR19732430-RR19732436-RR19732442-RR19
77" 44U)772424-RR19772430-RR19772436-RR19772442-RR19
84" (48U)842424-RR19842430-RR19842436-RR19842442-RR19
28" Rack Mounting in Extra Wide Unit for Cabling and Airflow with 19" Reducer Rails
Panel Opening Height24" Internal Depth30" Internal Depth36" Internal Depth42" Internal Depth
24.5" (14U)242824-RR19242830-RR19242836-RR19242842-RR19
35" (20U)352824-RR19352830-RR19352836-RR19352842-RR19
42" (24U)422824-RR19422830-RR19422836-RR19422842-RR19
52.5" (30U)522824-RR19522830-RR19522836-RR19522842-RR19
61.25" (35U)612824-RR19612830-RR19612836-RR19612842-RR19
70" (40U)702824-RR19702830-RR19702836-RR19702842-RR19
73.5" (42U)732824-RR19732830-RR19732836-RR19732842-RR19
77" 44U)772824-RR19772830-RR19772836-RR19772842-RR19
84" (48U)842824-RR19842830-RR19842836-RR19842842-RR19
