Fan Top Panels

Server-Rack-Fan-Top-Panel
Server-Rack-Fan-Top-Panel
Server-Rack-Fan-Top-Panel
Server-Rack-Fan-Top-Panel

Fan top panels provide a cost effective way to cool or assist in cooling an enclosure by exhausting the hot air that rises to the top of the rack keeping equipment cool and not blowing the hot air into an aisle.

Fan top panels come in a wide variety of configurations from 105 cfm to 1605 cfm. They can be configured with (1-9) 105 cfm fans or (1-3) 535 cfm fans. Fan tops can come in either 115v or 230 volt versions.

Sales Information

Features

  • Fan top panels can be configured for all Martin racks
  • (1-9) Low profile 105 cfm fans, 105 cfm to 945 cfm
  • (1-3) 535 cfm fans, 535 cfm to 1605 cfm
  • 115v or 230v
  • Finger Guards
  • 6′ Cord and Plug (Longer cords optional)
  • Can be configured as intake fans with or without intake filters
  • Thermostats to control one or more fans (Optional)

FT2036-535-2HC

FAN TOP PANEL WITH 535 CFM FAN AND CABLE ACCESS (115V)

Enclosure Frame
ID Depth		19" ID Wide
Enclosures		20" ID Wide
Enclosures		23" & 24" Mounting
in 24" ID Wide Enclosures		28" ID Wide
Enclosures
24"FT1924-2HCFT2024-2HCFT2424-2HCFT2824-2HC
30"FT1930-2HCFT2030-2HCFT2430-2HCFT2830-2HC
36"FT1936-2HCFT2036-2HCFT2436-2HCFT2836-2HC
42"FT1942-2HCFT2042-2HCFT2442-2HCFT2842-2HC

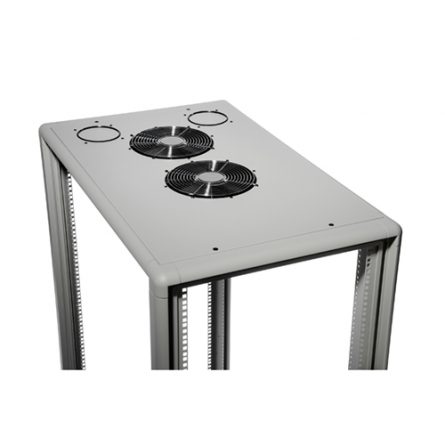

FT2036-2535-2HC

FAN TOP PANEL WITH (2) 535 CFM FANS AND CABLE ACCESS (115V)

Enclosure Frame
ID Depth		19" ID Wide
Enclosures		20" ID Wide
Enclosures		23" & 24" Mounting
in 24" ID Wide Enclosures		28" ID Wide
Enclosures
24"FT1924-2535-2HCFT2024-2535-2HCFT2424-2535-2HCFT2824-2535-2HC
30"FT1930-2535-2HCFT2030-2535-2HCFT2430-2535-2HCFT2830-2535-2HC
36"FT1936-2535-2HCFT2036-2535-2HCFT2436-2535-2HCFT2836-2535-2HC
42"FT1942-2535-2HCFT2042-2535-2HCFT2442-2535-2HCFT2842-2535-2HC

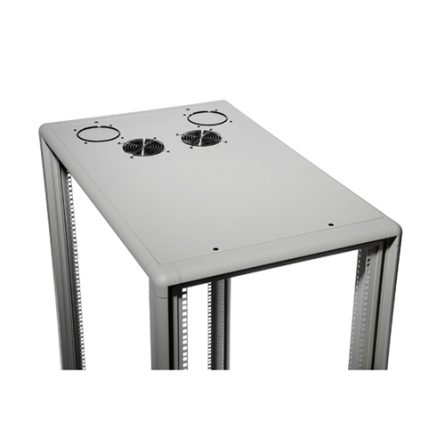

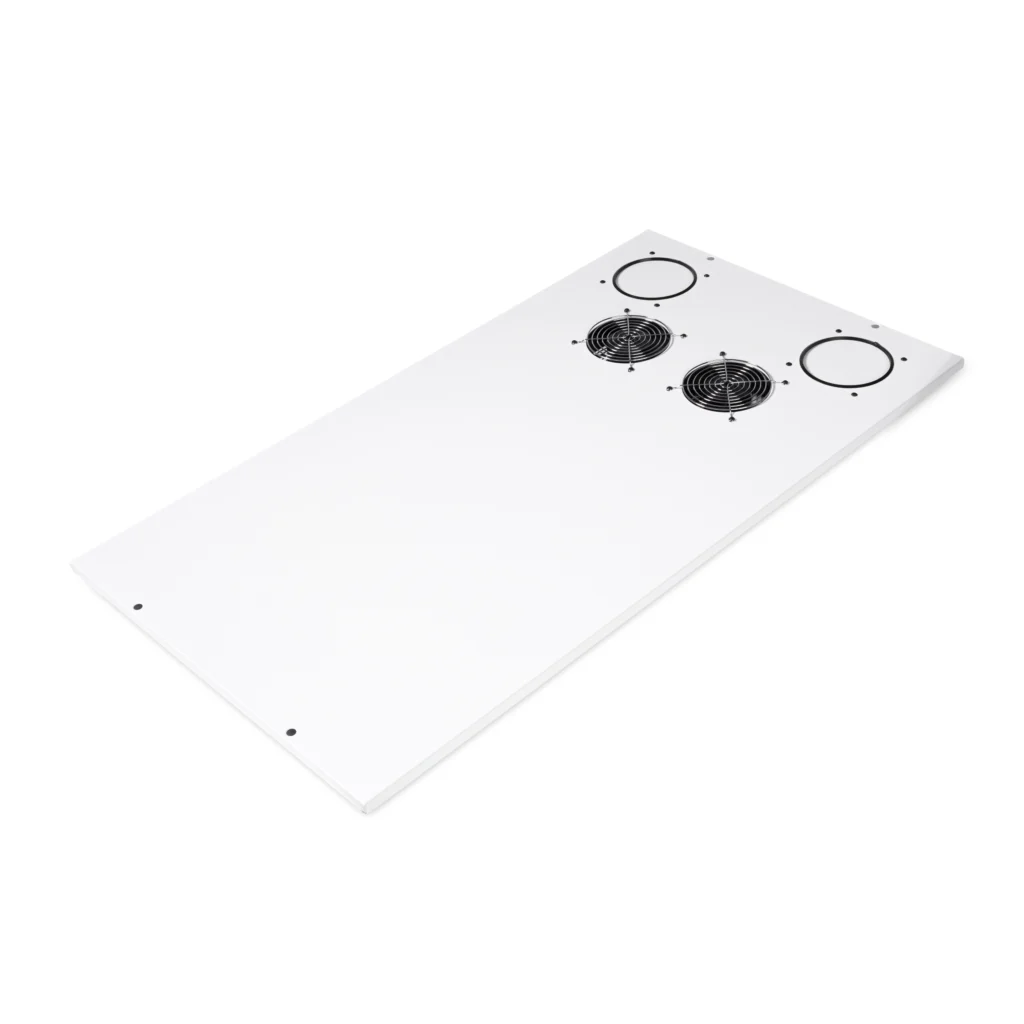

FT2036-2105-2HC

FAN TOP PANEL WITH (2) 105 CFM FANS AND CABLE ACCESS (115V)

Enclosure Frame
ID Depth		19" ID Wide
Enclosures		20" ID Wide
Enclosures		23" & 24" Mounting
in 24" ID Wide Enclosures		28" ID Wide
Enclosures
24"FT1924-2105-2HCFT2024-2105-2HCFT2424-2105-2HCFT2824-2105-2HC
30"FT1930-2105-2HCFT2030-2105-2HCFT2430-2105-2HCFT2830-2105-2HC
36"FT1936-2105-2HCFT2036-2105-2HCFT2436-2105-2HCFT2836-2105-2HC
42"FT1942-2105-2HCFT2042-2105-2HCFT2442-2105-2HCFT2842-2105-2HC

FT2036-4105-2HC-e1375217427326

FAN TOP PANEL WITH (4) 105 CFM FAN AND CABLE ACCESS (115V)

Enclosure Frame
ID Depth		 19" ID Wide Enclosures20" ID Wide Enclosures23" and 24" Mounting
in 24" ID Wide Enclosures		 28" ID Wide Enclosures
24"FT1924-4105-2HCFT2024-4105-2HCFT2424-4105-2HCFT2824-4105-2HC
30"FT1930-4105-2HCFT2030-4105-2HCFT2430-4105-2HCFT2830-4105-2HC
36"FT1936-4105-2HCFT2036-4105-2HCFT2436-4105-2HCFT2836-4105-2HC
42"FT1942-4105-2HCFT2042-4105-2HCFT2442-4105-2HCFT2842-4105-2HC
